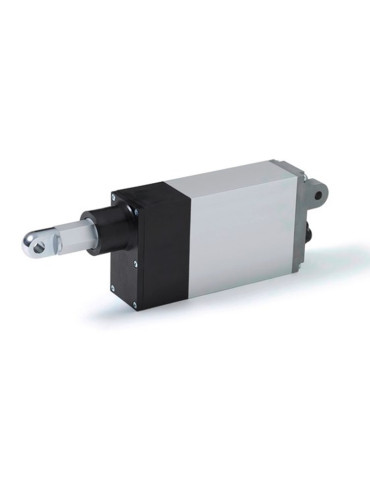

Junior 2 - D - FS100% - 24VDC - S 150
Junior 2 - D - FS100% - 24VDC - S 150
Junior 2 - D - FS100% - 24VDC - S 150
Junior Industrial actuator
The JUNIOR are the smallest models in our range.They are compact and the parallel actuator allows a very small center distance.
Some applications:
- proportional adjustment
- tilting device
> - Shutter or shutter control
- Circuit breaker control
Some applications:
- proportional adjustment
- tilting device
> - Shutter or shutter control
- Circuit breaker control
Junior industrial actuators
- Product range
- Junior Industrial actuator
- Double scraper
- Yes
- With mandatory electromagnetic brake
- Yes
- Color treatment
- Black and silver
- Screw type
- Steel screws - Synthetic nut
- Length of stroke
- 150 mm
- Temperature range
- -10 to +50 °C
- Stem material
- Aluminum alloy
- Stem
- Hexagonal with anti-rotation system
- Limit switch
- electromechanical adjustable
- Stem fastening
- Fixed eyecup
- Body fixing
- Fixed double eyecup
- Body material
- Aluminum and plastic
- Stroke speed
- 14 mm/s
- Load (N)
- 250
- Service factor
- FS3 (100%)
- Voltage type
- Direct current
- Supply voltage
- 24 V
- IP protection type
- IP54
- Brake voltage
- 24 V
- Motor current
- 3,0 A
- Options
- Position sensor : Potentiometer or encoder - Supply voltage : 12VDC or 48VDC
- Accessories
- Adjustable eyepiece / Swivel - Spring Rod end Clevis
- Dimension b
- 211 mm
- Dimension note
- Download the documentation to have the additional dimensions.
- Dimension c
- 56 mm
- Dimension d
- 112 mm
