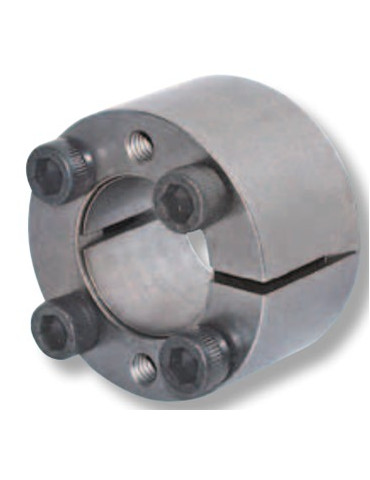

MOY2B8

MOY2B8


hubs without support

The Binder-Magnetic Expanding Hub is especially suitable for quick mounting, making it easy to index multiple belts in the conveying area. This one can be mounted with the recessed support, model MOY1B & MOY2B or protruding support model MOY1B.
Hubs
Download the 3D file
Download PDF
Grayed out functions require you to be logged in to your account
login to my account
Dimensional plan
Recessed mounting
Transmitted torque
11 N⋅m
Clamping screw N x type
3 - M2,5x10
Tightening torque
1,2 N⋅m
Bore diameter D
18 mm
Dimensions dxD
8 x 18 mm
Bore diameter of hubs
8 mm
Dimension B1
13,5 mm
Dimension B3
11 mm
Technical data
Installation: tighten the CHC screws on the periphery uniformly in opposition and respecting the tightening torque indicated in the data sheet. Disassembly: Remove the screws and retighten them in the extraction
holes in opposition and uniformly until th
