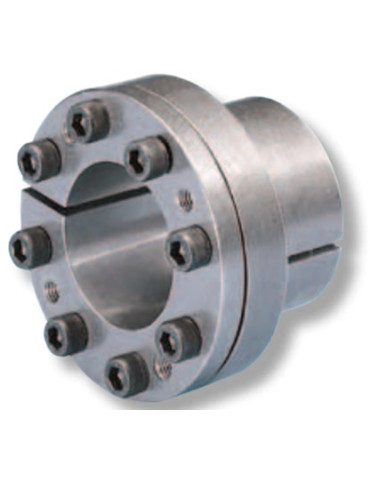

MOY1B50 Hubs
Standard hubs with support
Standard hubs with support
The Binder-Magnetic Expanding Hub is especially suitable for quick mounting, making it easy to index multiple belts in the conveying area. This one can be mounted with the recessed support, model MOY1B & MOY2B or protruding support model MOY1B.
Hubs
- Transmitted torque
- 2473 N⋅m
- Clamping screw N x type
- 10 - M8x22
- Tightening torque
- 42 N⋅m
- Bore diameter D
- 65 mm
- Embedded shoulder diameter Da
- 94 mm
- Shoulder depth a
- 24 mm
- Dimensions dxD
- 50 x 65 mm
- Bore diameter of hubs
- 50 mm
- Dimension D1
- 92 mm
- Dimension B1
- 82 mm
- Dimension B2
- 74 mm
- Dimension B3
- 50 mm
- Technical data
- Installation: tighten the CHC screws on the periphery uniformly in opposition and respecting the tightening torque indicated in the data sheet. Disassembly: Remove the screws and retighten them in the extraction
holes in opposition and uniformly until th
