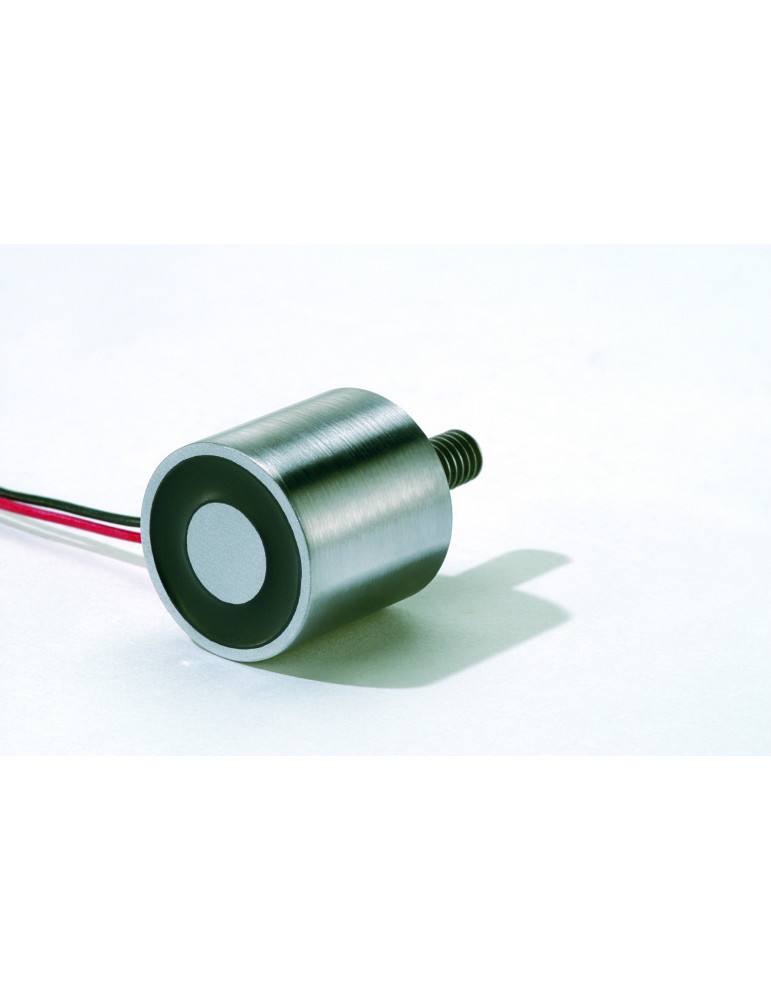

132007 Holding magnets
Permanent magnet section cup
- Protection index
- IP65
- Thickness of counter plates
- 6 mm
- Air gap force zero
- 720 N
- Air gap force 0.1 mm
- 500 N
- Air gap force 0.2 mm
- 355 N
- Holdingmagnet connection
- Free wires
- Insulation class of the holdingmagnet
- E
- Standard voltage of the suction cups
- 24 V
- Duty cycle of the holdingmagnet
- 100 %
- Power of the holdingmagnet
- 13,3 W
- Holdingmagnets options
- Other voltages and duty factors on request. Note: When the suction pads or bars are used for handling, it will be necessary to choose a safety factor of 3 on the force and to take note of the technica
- Air gap force 1 mm
- 70 N
- Length of the wires
- 200 mm
- Air gap force 0.5 mm
- 160 N
- Weight of the holdingmagnets
- 0,9 kg

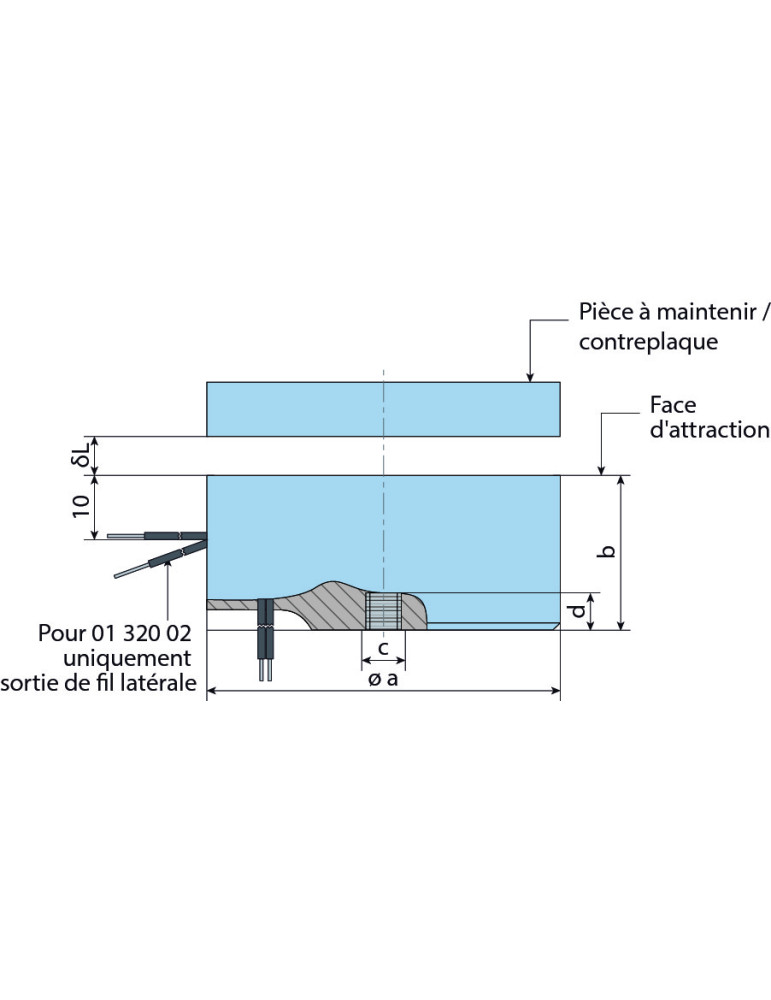

- Dimension A
- 70 mm
- Dimension B
- 45 mm
- Dimension C
- M8 mm
- Dimension D
- 8 mm
- Product range
- Permanent magnet section cup
