ERMI200/60-3

ERMI200/60-3

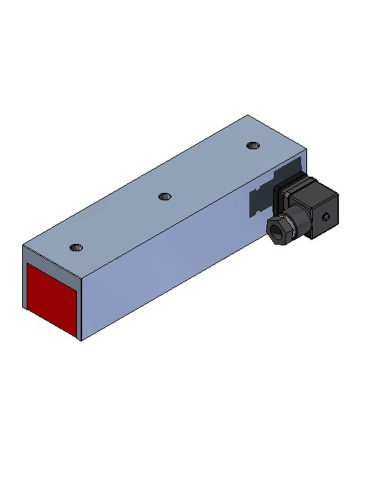

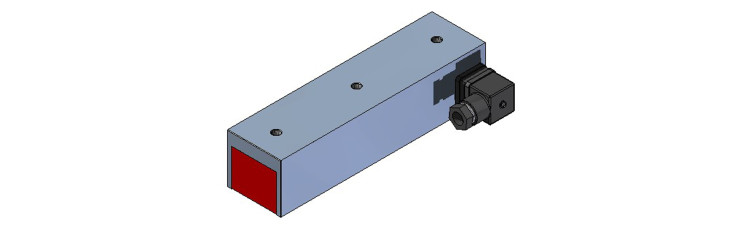

Electromagnetic bar with permanent magnets

Electromagnet bars with permanent magnet, attraction without current, release under tension.

Download the 3D file

Download PDF

Grayed out functions require you to be logged in to your account

login to my account

Dimensional plan Mechanical data Electrical data Options Permanent magnet section cup

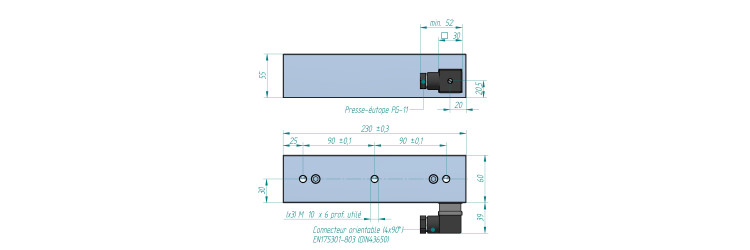

Dimensional plan

Protection index: IP65

Thickness of counter plates: 3 mm

Air gap force zero: 1350 N

Air gap force 0.1 mm: 1250 N

Air gap force 0.2 mm: 1150 N

Air gap force 0.3 mm: 1100 N

Holdingmagnet connection: DIN connector

Insulation class of the holdingmagnet: Y

Standard voltage of the suction cups: 24 V

Duty cycle of the holdingmagnet: 15 %

Power of the holdingmagnet: 250 W

Holdingmagnets options: Other voltages and duty factors on request. Note: When the suction pads or bars are used for handling, it will be necessary to choose a safety factor of 3 on the force and to take note of the technica

Air gap force 1 mm: 570 N

Air gap force 0.5 mm: 925 N

Air gap force 0.4 mm: 1000 N

Product range: Electromagnetic bar with permanent magnets
