VM30/ND-3 Holding magnets

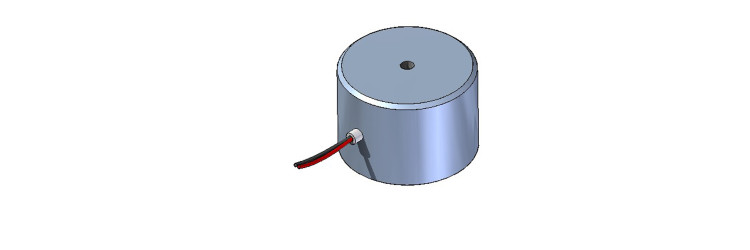

Permanent magnet section cup
Permanent magnet section cup
Suction cup with permanent magnet, attraction without current, release under tension.
Holding magnets
- Protection index
- IP65
- Thickness of counter plates
- 3 mm
- Air gap force zero
- 181 N
- Air gap force 0.2 mm
- 74 N
- Holdingmagnet connection
- Free wires
- Insulation class of the holdingmagnet
- Y
- Standard voltage of the suction cups
- 24 V
- Duty cycle of the holdingmagnet
- 20 %
- Power of the holdingmagnet
- 25 W
- Holdingmagnets options
- Other voltages and duty factors on request. Note: When the suction pads or bars are used for handling, it will be necessary to choose a safety factor of 3 on the force and to take note of the technica
- Air gap force 0.5 mm
- 22 N

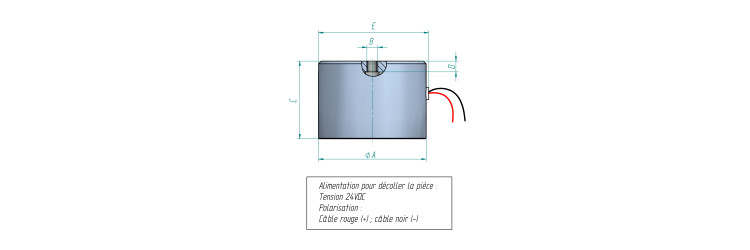

- Dimension E
- 35,2 mm
- Weight of the holdingmagnets
- 0,13 kg
- Dimension A
- 30 mm
- Dimension B
- M4 mm
- Dimension C
- 32,5 +/- 0,1 mm
- Dimension D
- 6 mm
- Product range
- Permanent magnet section cup
