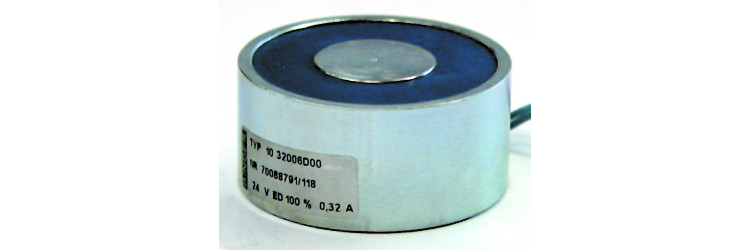

GT250B-18 Holding magnets
Electromagnetic sucker
- Protection index
- IP65
- Thickness of counter plates
- 18 mm
- Air gap force zero
- 18500 N
- Air gap force 0.1 mm
- 17500 N
- Air gap force 0.2 mm
- 16500 N
- Holdingmagnet connection
- Free wires
- Insulation class of the holdingmagnet
- E
- Standard voltage of the suction cups
- 24 V
- Duty cycle of the holdingmagnet
- 100 %
- Power of the holdingmagnet
- 90 W
- Holdingmagnets options
- Other voltages and duty factors on request. Note: When the suction pads or bars are used for handling, it will be necessary to choose a safety factor of 3 on the force and to take note of the technica
- Air gap force 1 mm
- 10800 N

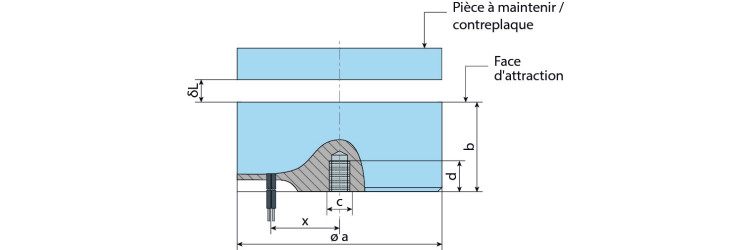

- Dimension X
- 98 mm
- Length of the wires
- 300 mm
- Air gap force 0.5 mm
- 14500 N
- Weight of the holdingmagnets
- 25,9 kg
- Dimension A
- 250 mm
- Dimension B
- 80 mm
- Dimension C
- M24 mm
- Dimension D
- 36 mm
- Product range
- Electromagnetic sucker
