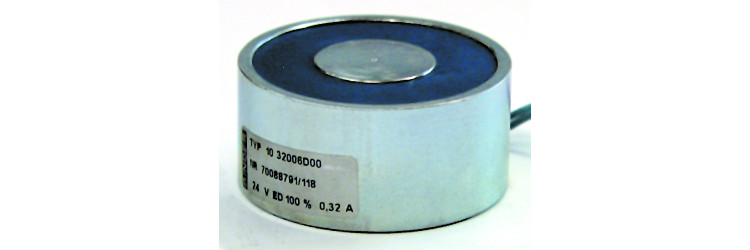

GT180B-13 Holding magnets
Electromagnetic sucker
- Protection index
- IP65
- Thickness of counter plates
- 13 mm
- Air gap force zero
- 10500 N
- Air gap force 0.1 mm
- 10000 N
- Air gap force 0.2 mm
- 9300 N
- Holdingmagnet connection
- Free wires
- Insulation class of the holdingmagnet
- E
- Standard voltage of the suction cups
- 24 V
- Duty cycle of the holdingmagnet
- 100 %
- Power of the holdingmagnet
- 49 W
- Holdingmagnets options
- Other voltages and duty factors on request. Note: When the suction pads or bars are used for handling, it will be necessary to choose a safety factor of 3 on the force and to take note of the technica
- Air gap force 1 mm
- 4900 N

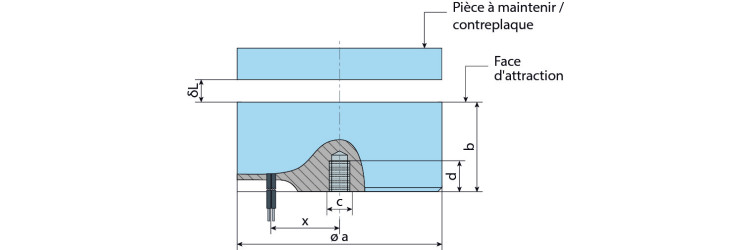

- Dimension X
- 71 mm
- Length of the wires
- 300 mm
- Air gap force 0.5 mm
- 7700 N
- Weight of the holdingmagnets
- 10,5 kg
- Dimension A
- 180 mm
- Dimension B
- 63 mm
- Dimension C
- M24 mm
- Dimension D
- 36 mm
- Product range
- Electromagnetic sucker
