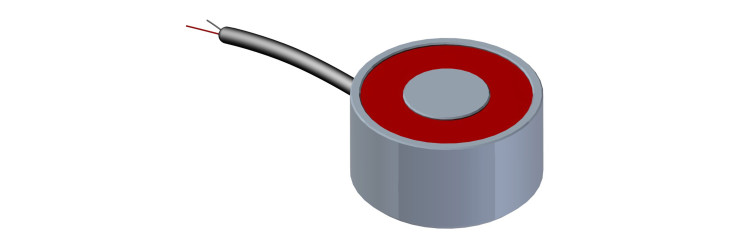

VEM150-3 Holding magnets
Electromagnetic sucker
- Protection index
- IP65
- Thickness of counter plates
- 3 mm
- Air gap force zero
- 700 N
- Air gap force 0.1 mm
- 580 N
- Air gap force 0.2 mm
- 550 N
- Air gap force 0.3 mm
- 480 N
- Holdingmagnet connection
- Free wires
- Insulation class of the holdingmagnet
- B
- Standard voltage of the suction cups
- 24 V
- Duty cycle of the holdingmagnet
- 100 %
- Power of the holdingmagnet
- 40 W
- Holdingmagnets options
- Terminal block connection. Other voltages and duty factors on request. Note: When the suction pads or bars are used for handling, it will be necessary to choose a safety factor of 3 on the force and t
- Air gap force 1 mm
- 390 N

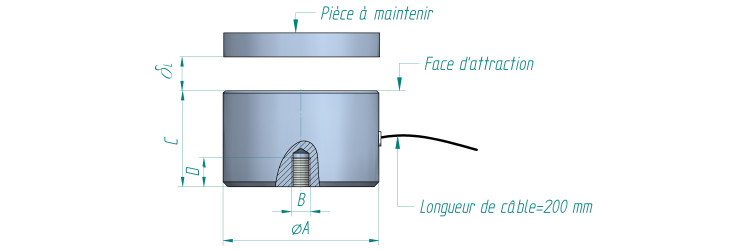

- Dimension F
- 165 mm
- Dimension E
- 197 mm
- Weight of the holdingmagnets
- 6,4 kg
- Dimension A
- 150 mm
- Dimension B
- M16 mm
- Dimension C
- 56 mm
- Dimension D
- 24 mm
- Product range
- Electromagnetic sucker
