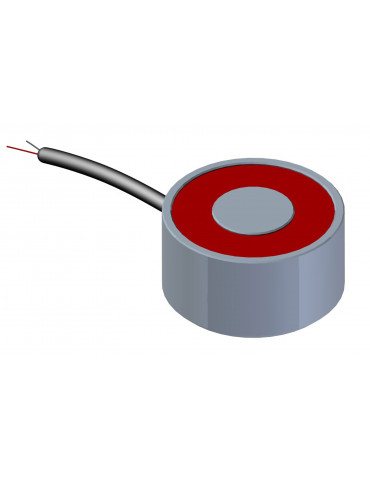

VEM40-3 Holding magnets
Electromagnetic sucker
- Protection index
- IP65
- Thickness of counter plates
- 3 mm
- Air gap force zero
- 300 N
- Air gap force 0.1 mm
- 203 N
- Air gap force 0.2 mm
- 133 N
- Air gap force 0.3 mm
- 27 N
- Holdingmagnet connection
- Free wires
- Insulation class of the holdingmagnet
- B
- Standard voltage of the suction cups
- 24 V
- Duty cycle of the holdingmagnet
- 100 %
- Power of the holdingmagnet
- 5,6 W
- Holdingmagnets options
- Terminal block connection. Other voltages and duty factors on request. Note: When the suction pads or bars are used for handling, it will be necessary to choose a safety factor of 3 on the force and t
- Air gap force 1 mm
- 4,5 N
- Dimension F
- 55 mm
- Weight of the holdingmagnets
- 0,2 kg
- Dimension A
- 40 mm
- Dimension B
- M5 mm
- Dimension C
- 26 mm
- Dimension D
- 8 mm
- Product range
- Electromagnetic sucker
