Econom 0 - K - FS15% - 230V1-AC - S 100 Econom industrial actuators
Econom Industrial actuator
Accueil | Electric Actuators | Standard industrial actuators | Econom industrial actuators |

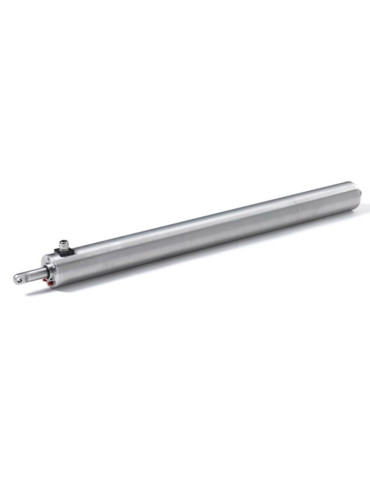

Econom 0 - K - FS15% - 230V1-AC - S 100
Econom 0 - K - FS15% - 230V1-AC - S 100
Econom 0 - K - FS15% - 230V1-AC - S 100
Econom Industrial actuator
The ECONOM are the most 'smart' actuators in the range with their many options and customization possibilities: voltage, speed, sealing.
Some applications:
- Door lock
- Device of operation
- Special machine
- Test bench
- Agro-food
Some applications:
- Door lock
- Device of operation
- Special machine
- Test bench
- Agro-food
Econom industrial actuators
- Product range
- Econom Industrial actuator
- Double scraper
- Yes
- With mandatory electromagnetic brake
- No
- Color treatment
- Black
- Screw type
- Steel screws - Synthetic nut
- Length of stroke
- 100 mm
- Temperature range
- -20 to +80 °C
- Stem material
- Chrome steel
- Stem
- Cylindrical with anti-rotation system
- Limit switch
- electromechanical adjustable
- Stem fastening
- Fixed eyecup
- Body fixing
- Fixed eyecup
- Body material
- Painted steel
- Stroke speed
- 0,6 mm/s
- Load (N)
- 3000
- Service factor
- FS15%
- Voltage type
- Alternating current
- Supply voltage
- 230 V
- IP protection type
- IP54
- Brake voltage
- 230 V
- Motor current
- 0,8 A
- Options
- INOX version 1.4301 - IP65 - Position sensor : Potentiometer or encoder - External capacitor - Special surface treatment
- Accessories
- Other fasteners : clevis, ball joint, eye cup with spring or swivel, etc …
- Dimension b
- 394 mm
- Dimension note
- Download the documentation to have the additional dimensions.
- Dimension d
- 62 mm
