FR-30-60-600-40

Conveyor with internal drive

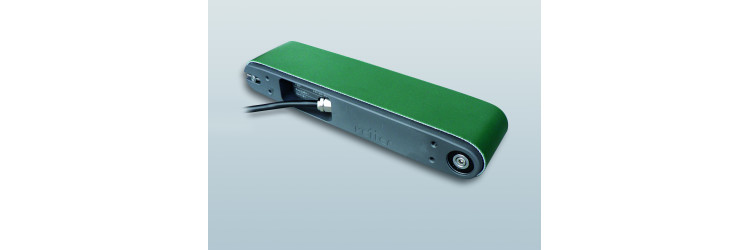

The mini-conveyor with integrated motor is very compact and is particularly suitable for transfers of light and small products. It is equipped with a DC motor with servo control and can be equipped depending on the product to be conveyed from a specific conveyor belt. It is designed on the basis of a profile offering multiple mounting possibilities making the implementation particularly simple and practical.
Conveyors
Grayed out functions require you to be logged in to your account
login to my account
Speed/output relationship curve

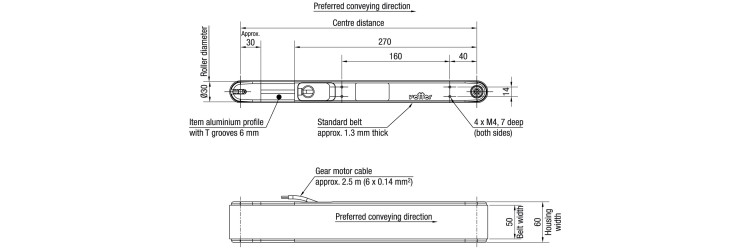

Dimensional plan
Belt designation
Green flat band FDA 2E/PG 02, FDA, antistatic
Connection
Wire 2,5 m (6 x 0,14 mm²)
Standard voltage
24 VDC
Standard center distance
600 mm
Conveyor belt width
50 mm
Height
30 mm
Width
60 mm
Maximum load
40 N
Linear speed factory setting
3 m/min
Min. linear speed, analog signal 1V DC
0,5 m/min
Max. linear speed, analog signal 10V DC
3,5 m/min
