FR-20-40-350-5 Conveyors
Conveyor with internal drive
Conveyor with internal drive

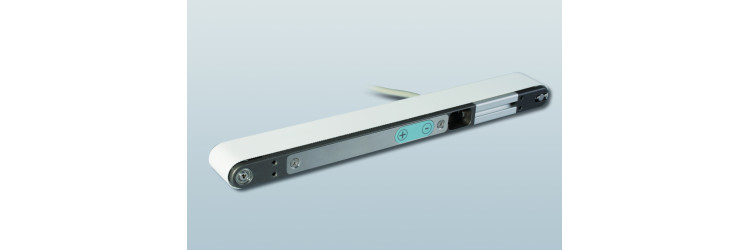

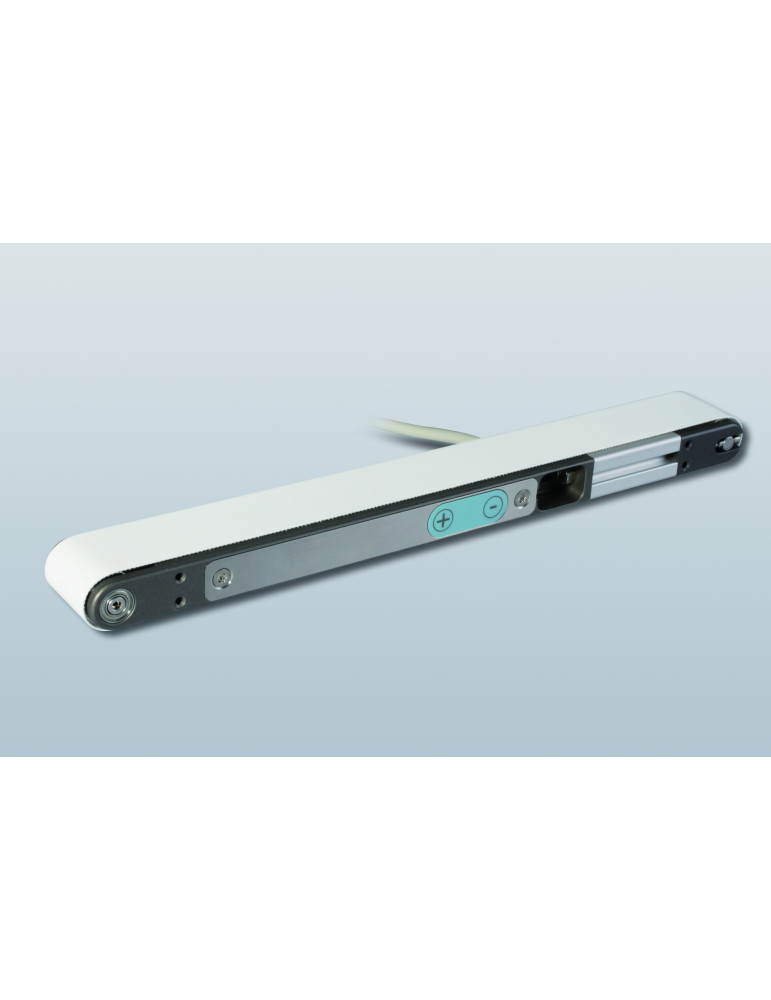

The mini-conveyor with integrated motor is very compact and is particularly suitable for transfers of light and small products. It is equipped with a DC motor with servo control and can be equipped depending on the product to be conveyed from a specific conveyor belt. It is designed on the basis of a profile offering multiple mounting possibilities making the implementation particularly simple and practical.
Conveyors
- Belt designation
- White flat band FDA 1E/PW 02
- Connection
- Wire 2,5 m (5 x 0,25 mm²)
- Standard voltage
- 24 VDC
- Standard center distance
- 350 mm
- Conveyor belt width
- 32 mm
- Height
- 20 mm
- Width
- 40 mm
- Maximum load
- 5 N
- Linear speed factory setting
- Adjustable m/min
- Min. linear speed, analog signal 1V DC
- 2 m/min
- Max. linear speed, analog signal 10V DC
- 8 m/min
