FR-12-20-150-2 Conveyors

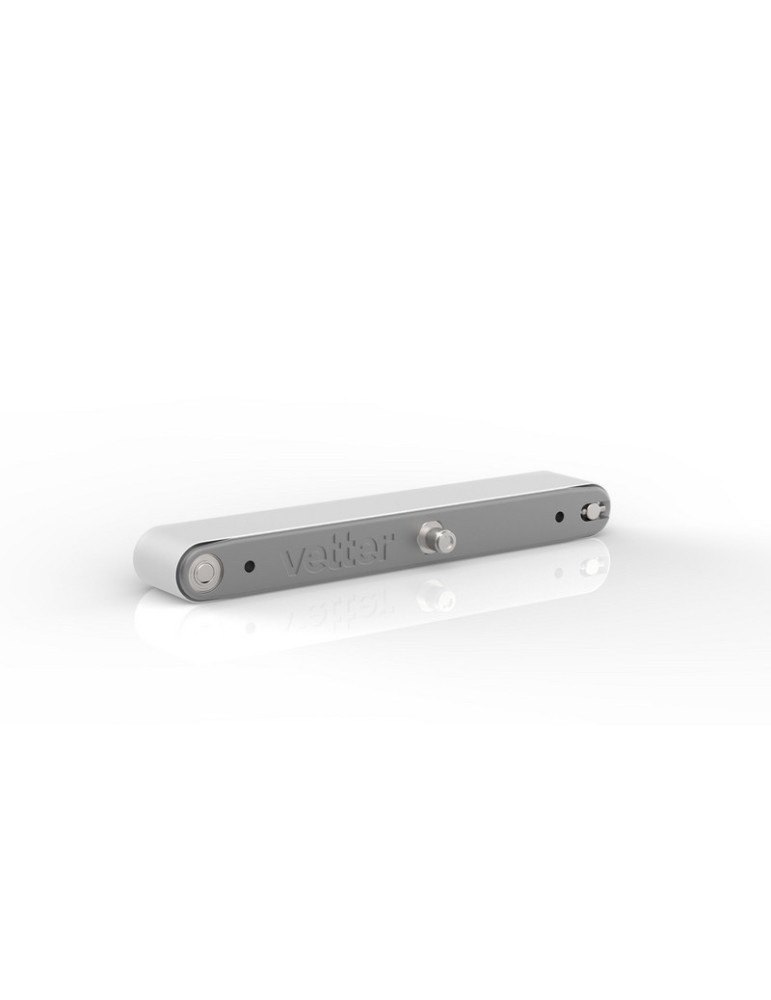

Conveyor with internal drive
Conveyor with internal drive
The mini-conveyor with integrated motor is very compact and is particularly suitable for transfers of light and small products. It is equipped with a DC motor with servo control and can be equipped depending on the product to be conveyed from a specific conveyor belt. It is designed on the basis of a profile offering multiple mounting possibilities making the implementation particularly simple and practical.
Conveyors
- Belt designation
- Translucent flat band FDA
- Connection
- Wire 2 m (4 x 0,14 mm²)
- Standard voltage
- 6 VDC
- Standard center distance
- 150 mm
- Conveyor belt width
- 17 mm
- Height
- 12 mm
- Width
- 20 mm
- Maximum load
- 2 N
- Linear speed factory setting
- 1,5 m/min
