FR-20-40-DL-800-5

FR-20-40-DL-800-5

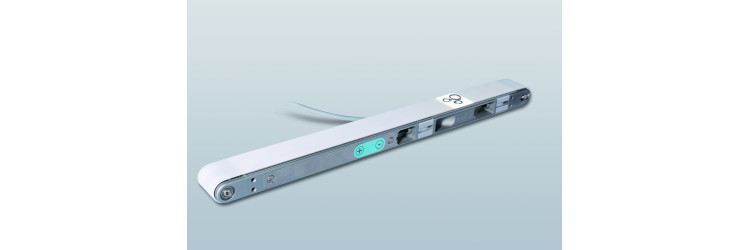

Conveyor with internal drive and optical window

The integrated mini-conveyor with optical window is very compact and is particularly suitable for transfers of light and small products. It has an optical window for better control of parts and is equipped with a DC motor with servo. It is designed on the basis of a profile offering multiple mounting possibilities making the implementation particularly simple and practical.
Conveyors
Download PDF
Grayed out functions require you to be logged in to your account
login to my account
Speed/output relationship curve
Belt designation
Translucent flat band FDA
Connection
Wire 2,5 m (10 x 0,14 mm²)
Standard voltage
24 VDC
Standard center distance
800 mm
Conveyor belt width
32 mm
Height
20 mm
Width
40 mm
Maximum load
5 N
Min. linear speed, analog signal 1V DC
2 m/min
Max. linear speed, analog signal 10V DC
8 m/min
