FR-20-40-DL-400-5 Conveyors

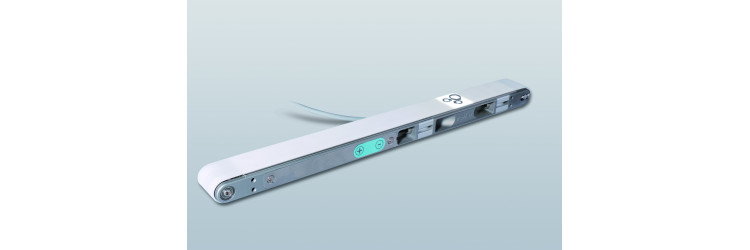

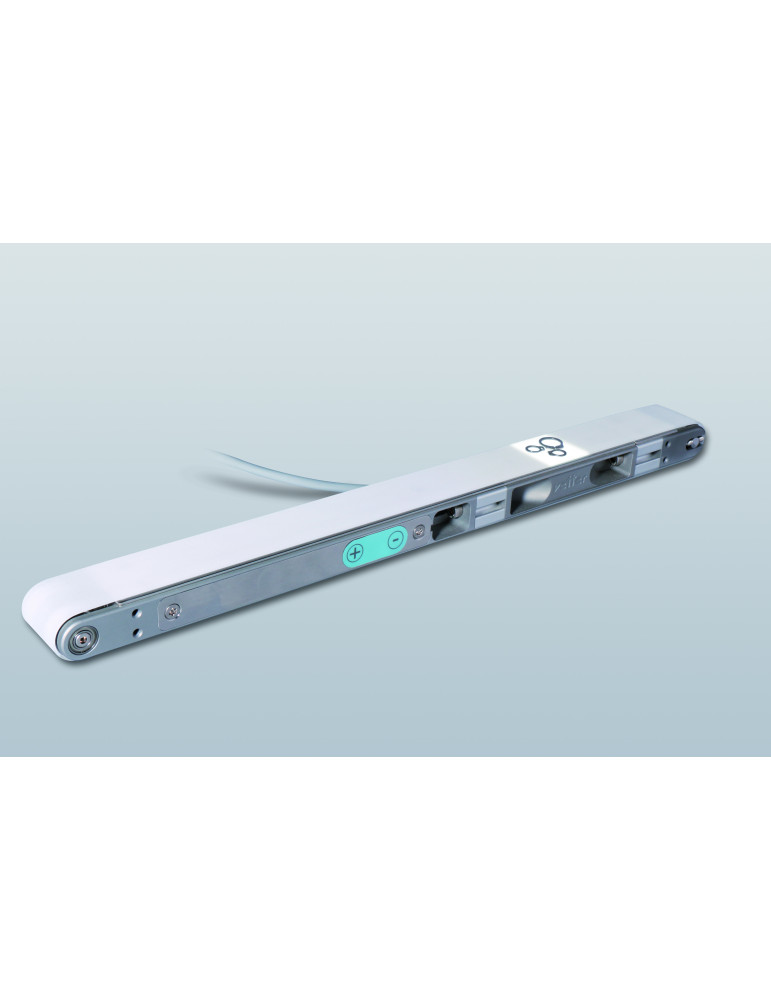

Conveyor with internal drive and optical window
Conveyor with internal drive and optical window
The integrated mini-conveyor with optical window is very compact and is particularly suitable for transfers of light and small products. It has an optical window for better control of parts and is equipped with a DC motor with servo. It is designed on the basis of a profile offering multiple mounting possibilities making the implementation particularly simple and practical.
Conveyors
- Belt designation
- Translucent flat band FDA
- Connection
- Wire 2,5 m (10 x 0,14 mm²)
- Standard voltage
- 24 VDC
- Standard center distance
- 400 mm
- Conveyor belt width
- 32 mm
- Height
- 20 mm
- Width
- 40 mm
- Maximum load
- 5 N
- Min. linear speed, analog signal 1V DC
- 2 m/min
- Max. linear speed, analog signal 10V DC
- 8 m/min
