FR-20-20-M-300-30

FR-20-20-M-300-30

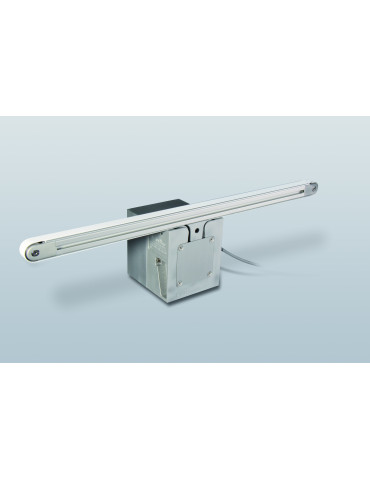

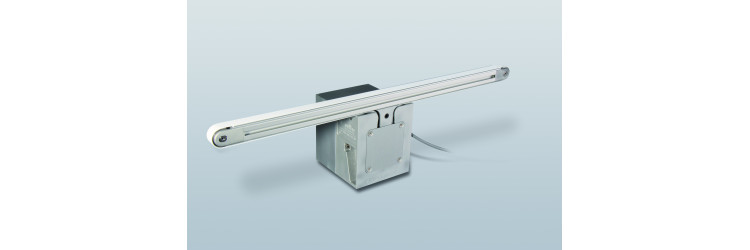

Centre drive conveyor

The mini-conveyor with central motor is very compact and is particularly suitable for transfers of light and small products. It is equipped with a DC motor with servo control and can be equipped depending on the product to be conveyed from a specific conveyor belt. It is designed on the basis of a profile offering multiple mounting possibilities making the implementation particularly simple and practical.
Conveyors
Download the 3D file
Download PDF
Grayed out functions require you to be logged in to your account
login to my account
Speed/output relationship curve
Belt designation
White flat band FDA 1E/PW 02, antistatic
Connection
Wire 2,5 m (6 x 0,14 mm²)
Standard voltage
24 VDC
Standard center distance
300 mm
Conveyor belt width
15 mm
Height
20 mm
Width
20 mm
Maximum load
30 N
Linear speed factory setting
30 m/min
Min. linear speed, analog signal 1V DC
2 m/min
Max. linear speed, analog signal 10V DC
40 m/min
