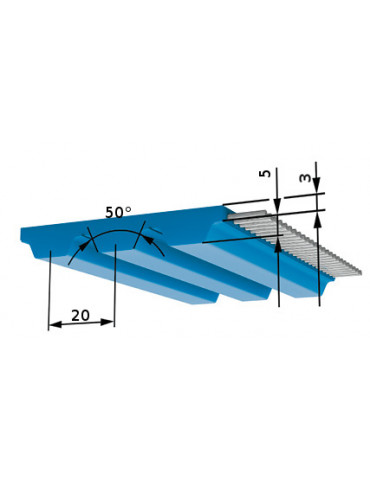

BINDER PREMIUM 75 AT20 PRO V Conveying belts
BRECOprotect® alimentary belt welding junction
BRECOprotect® alimentary belt welding junction
Conveying belts
- Range
- BINDERpremium
- Product range
- BRECOprotect® alimentary belt welding junction
- Application
- Food application
- Profile
- AT
- Pitch
- 20 mm
- Double toothed belt
- no
- PU Material steel tension member
- Blue AU1 AU1
- Shore hardness steel tension member PU belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 to 80 °C
- Winding
- S + Z
- Steel tension member permissible force FN at welding
- 8400 N
- Stainless steel tension member permissible force FN at welding
- 6720 N
- Width tolerance
- +/- 0.1 mm
- Belt width
- 75 mm
- Weight
- 0,72 kg/m
- Length tolerance
- +/-0.8 mm
- Total thickness tolerance
- -0.1/+0.3 mm
- Thickness tolerance of the tooth
- 0/-0,15 mm
- Z min single bending AISI cord
- 25
- Ø min Flexion simple câble AISI
- 180 mm
- Z min alternating bending AISI
- 28
- Ø min Flexion alternée AISI
- 200 mm
- Z min single bending steel cord
- 18
- Ø min Flexion simple câble acier
- 120 mm
- Z min alternating bending steel cord
- 25
- Ø min alternée simple câble acier
- 160 mm
