BINDER PREMIUM 50 AT10 PRO V Conveying belts
BRECOprotect® alimentary belt welding junction
BRECOprotect® alimentary belt welding junction
Conveying belts
- Range
- BINDERpremium
- Product range
- BRECOprotect® alimentary belt welding junction
- Application
- Food application

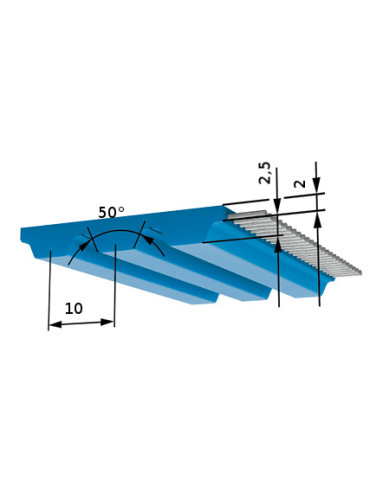

- Profile
- AT
- Pitch
- 10 mm
- Double toothed belt
- no
- PU Material steel tension member
- Blue AU1 AU1
- Shore hardness steel tension member PU belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 to 80 °C
- Winding
- S + Z
- Steel tension member permissible force FN at welding
- 4250 N
- Stainless steel tension member permissible force FN at welding
- 3190 N
- Width tolerance
- +/- 0.5 mm
- Belt width
- 50 mm
- Weight
- 0,29 kg/m
- Length tolerance
- +/-0.8 mm
- Total thickness tolerance
- -0.1/+0.3 mm
- Thickness tolerance of the tooth
- +/- 0,1 mm
- Z min single bending AISI cord
- 25
- Ø min Flexion simple câble AISI
- 80 mm
- Z min alternating bending AISI
- 40
- Ø min Flexion alternée AISI
- 130 mm
- Z min single bending steel cord
- 25
- Ø min Flexion simple câble acier
- 80 mm
- Z min alternating bending steel cord
- 25
- Ø min alternée simple câble acier
- 120 mm
