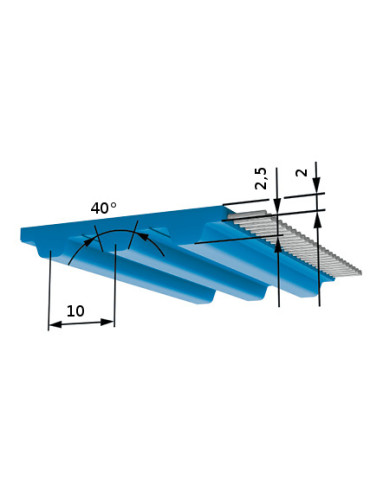

BINDER PREMIUM 25T10 PRO V

BINDER PREMIUM 25T10 PRO V

BINDER CUSTOM 100 AT10 BAS PAZ PIN V SUPERGRIP BLEU BAS

BINDER PREMIUM 32 T10 PRO V

BRECOprotect® alimentary belt welding junction

Download the 3D file

Download PDF

Grayed out functions require you to be logged in to your account

login to my account

Product range Technical characteristics Mechanical data Masses and dimensions Kinematic data

Range: BINDERpremium

Product range: BRECOprotect® alimentary belt welding junction

Application: Food application

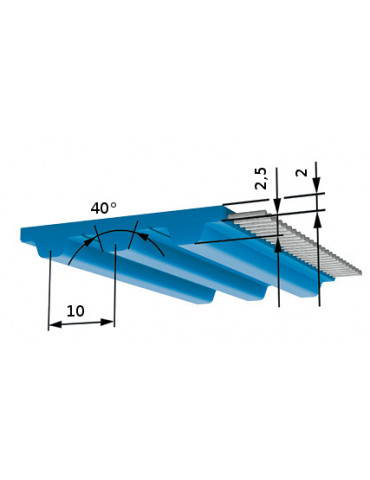

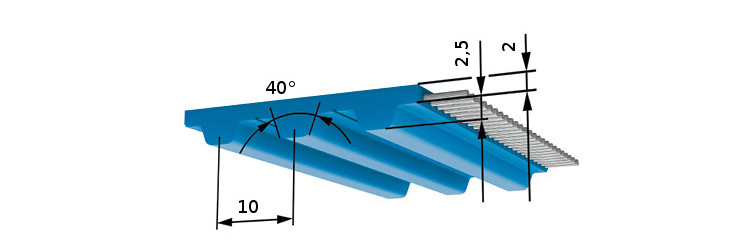

Profile: T

Pitch: 10 mm

Double toothed belt: no

PU Material steel tension member: Blue AU1 AU1

Shore hardness steel tension member PU belt: 92 ShA

Temperature range of steel tension member belt: 1 to 80 °C

Winding: S + Z

Steel tension member permissible force FN at welding: 1100 N

Width tolerance: +/- 0.5 mm

Belt width: 25 mm

Weight: 0,114 kg/m

Length tolerance: +/-0.8 mm

Total thickness tolerance: -0.1/+0.3 mm

Thickness tolerance of the tooth: 0/-0,1 mm

Z min single bending steel cord: 15

Ø min Flexion simple câble acier: 60 mm

Z min alternating bending steel cord: 20

Ø min alternée simple câble acier: 60 mm
