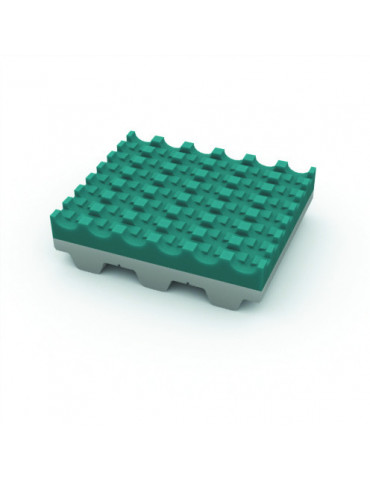

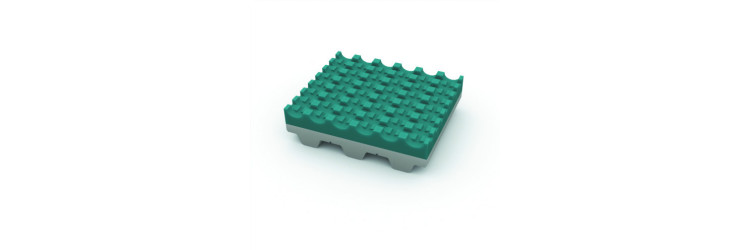

BINDER CUSTOM 75 T10 BAS PAZ PIN V SUPERGRIP BLEU
BINDER CUSTOM 75 T10 BAS PAZ PIN V SUPERGRIP BLEU
BINDER CUSTOM 75 T10 BAS PAZ PIN V SUPERGRIP BLEU
BRECO® Pinlock junction BRECObasic® belt with coating
Conveying belts
- Range
- BINDERcustom
- Product range
- BRECO® Pinlock junction BRECObasic® belt with coating
- Application
- Pinlock transport application
- Belt with coating
- SUPERGRIP BLAU
- Profile
- T
- Pitch
- 10 mm
- Double toothed belt
- no
- PU Material steel tension member
- Grey TPU BAS
- Shore hardness steel tension member PU belt
- 92 ShA
- Winding
- S+Z
- Pinlock 10 PIN permissible force FN at the junction
- 900 N
- Width tolerance
- +/- 0.5 mm
- Belt width
- 75 mm
- Length tolerance
- +/-0.8 mm
- Total thickness tolerance
- -0.1/+0.3 mm
- Thickness tolerance of the tooth
- +/- 0,1 mm
- Z min single bending steel cord
- 18
- Ø min Flexion simple câble acier
- 60 mm
- Z min alternating bending steel cord
- 25
- Ø min alternée simple câble acier
- 120 mm
