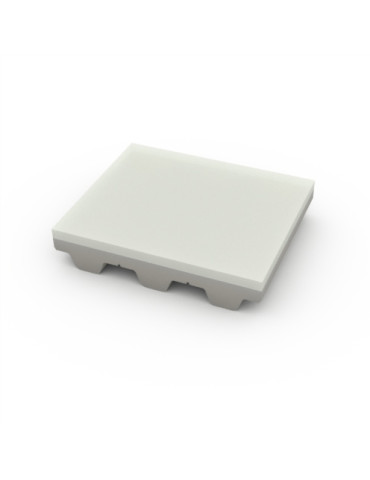

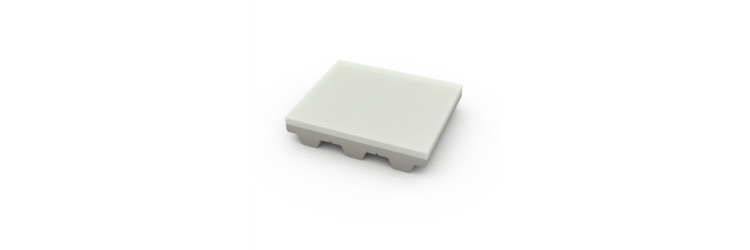

BINDER CUSTOM 25 T10 BAS PAZ PIN V AFT2

BINDER CUSTOM 25 T10 BAS PAZ PIN V AFT2

BINDER CUSTOM 100 T10 BAS PAZ PIN V REDEX 40 2 mm

BINDER CUSTOM 75 T10 BAS PAZ PIN V AFT2

BRECO® Pinlock junction BRECObasic® belt with coating

Download PDF

Grayed out functions require you to be logged in to your account

login to my account

Product range Technical characteristics Mechanical data Masses and dimensions Kinematic data

Range: BINDERcustom

Product range: BRECO® Pinlock junction BRECObasic® belt with coating

Application: Pinlock transport application

Belt with coating: AFT2

Profile: T

Pitch: 10 mm

Double toothed belt: no

PU Material steel tension member: Grey TPU BAS

Shore hardness steel tension member PU belt: 92 ShA

Winding: S+Z

Pinlock 10 PIN permissible force FN at the junction: 300 N

Width tolerance: +/- 0.5 mm

Belt width: 25 mm

Length tolerance: +/-0.8 mm

Total thickness tolerance: -0.1/+0.3 mm

Thickness tolerance of the tooth: +/- 0,1 mm

Z min single bending steel cord: 25

Ø min Flexion simple câble acier: 80 mm

Z min alternating bending steel cord: 25

Ø min alternée simple câble acier: 120 mm
