BINDER CUSTOM 32 AT10 BAS PAZ PIN V AFT2 Conveying belts
BRECO® Pinlock junction BRECObasic® belt with coating
Accueil | Belts,Pulleys, Accessories | Belts | Conveying belts |

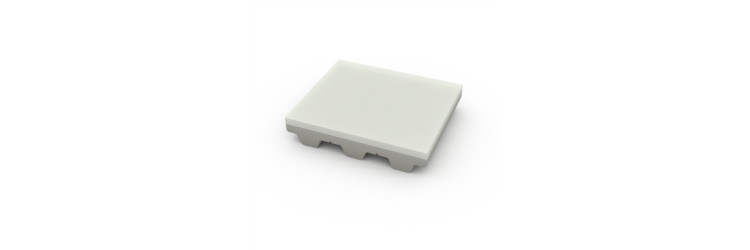

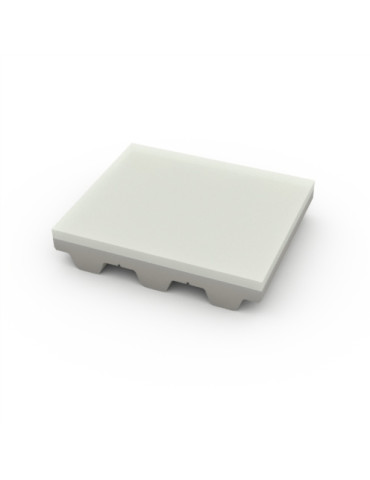

BINDER CUSTOM 32 AT10 BAS PAZ PIN V AFT2
BINDER CUSTOM 32 AT10 BAS PAZ PIN V AFT2
BINDER CUSTOM 32 AT10 BAS PAZ PIN V AFT2
BRECO® Pinlock junction BRECObasic® belt with coating
Conveying belts
- Range
- BINDERcustom
- Product range
- BRECO® Pinlock junction BRECObasic® belt with coating
- Application
- Pinlock transport application
- Profile
- AT
- Pitch
- 10 mm
- Double toothed belt
- no
- PU Material steel tension member
- Grey TPU BAS
- Shore hardness steel tension member PU belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 to 80 °C
- Winding
- S + Z
- Pinlock 6 PIN permissible force FN at the junction
- 300 N
- Pinlock 10 PIN permissible force FN at the junction
- 500 N
- Width tolerance
- +/- 1 mm
- Belt width
- 32 mm
- Length tolerance
- +/-0.8 mm
- Total thickness tolerance
- -0.1/+0.3 mm
- Thickness tolerance of the tooth
- 0/-0.15 mm
- Z min single bending steel cord
- 25
- Ø min Flexion simple câble acier
- 80 mm
- Z min alternating bending steel cord
- 25
- Ø min alternée simple câble acier
- 120 mm
