BINDER CUSTOM 50 T10 PIN Conveying belts

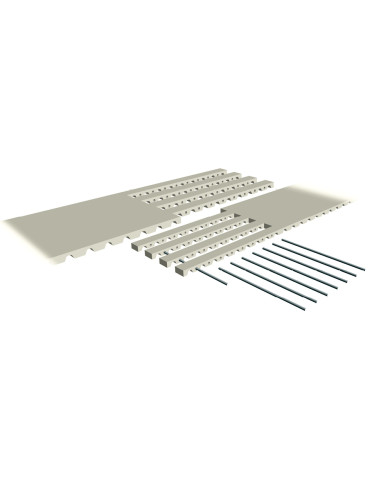

BRECO® Pinlock junction BRECO® standard belt
BRECO® Pinlock junction BRECO® standard belt
Conveying belts
- Range
- BINDERcustom
- Product range
- BRECO® Pinlock junction BRECO® standard belt
- Application
- Pinlock transport application
- Profile
- T
- Pitch
- 10 mm
- Double toothed belt
- no
- PU Material steel tension member
- White TPU ST1
- Shore hardness steel tension member PU belt
- 92 ShA
- Temperature range of steel tension member belt
- 8 to 80 °C
- Winding
- S + Z
- Pinlock 10 PIN permissible force FN at the junction
- 600 N
- Width tolerance
- +/- 0.5 mm
- Belt width
- 50 mm
- Length tolerance
- +/-0.8 mm
- Total thickness tolerance
- -0.1/+0.3 mm
- Thickness tolerance of the tooth
- +/- 0,1 mm
- Z min single bending steel cord
- 12
- Ø min Flexion simple câble acier
- 60 mm
- Z min alternating bending steel cord
- 20
- Ø min alternée simple câble acier
- 60 mm
