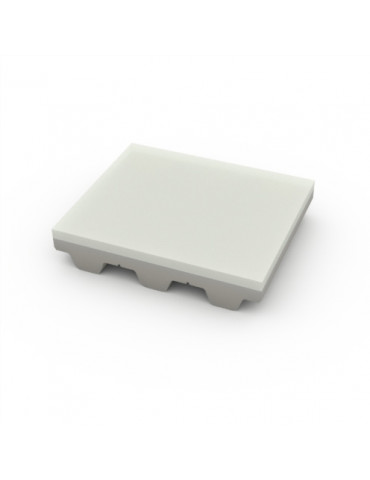

BINDER ACCESS 32 AT10 BAS PAZ V V AFT2 Conveying belts

BRECObasic® belt welding junction with coating

Accueil | Belts,Pulleys, Accessories | Belts | Conveying belts |
BINDER ACCESS 32 AT10 BAS PAZ V V AFT2

BINDER ACCESS 32 AT10 BAS PAZ V V AFT2

BINDER ACCESS 25 AT10 BAS PAZ V V AFT2

BINDER ACCESS 50 AT10 BAS PAZ V V AFT2

BRECObasic® belt welding junction with coating

Download PDF

Grayed out functions require you to be logged in to your account

login to my account

Tangential force transmissible by the teeth Product range Technical characteristics Mechanical data Masses and dimensions Kinematic data

Tangential force transmissible by the teeth

Range: BINDERaccess

Product range: BRECObasic® belt welding junction with coating

Application: Simple transport application

Belt with coating: PAZ AFT2

Profile: AT

Pitch: 10 mm

Double toothed belt: no

PU Material steel tension member: Grey TPU BAS

Shore hardness steel tension member PU belt: 92 ShA

Temperature range of steel tension member belt: 0 to 80 °C

Winding: S + Z

Steel tension member permissible force FN at welding: 2750 N

Width tolerance: +/- 0.5 mm

Belt width: 32 mm

Length tolerance: +/-0.8 mm

Total thickness tolerance: -0.1/+0.3 mm

Thickness tolerance of the tooth: 0/- 0,1 mm

Z min single bending steel cord: 25

Ø min Flexion simple câble acier: 80 mm

Z min alternating bending steel cord: 25

Ø min alternée simple câble acier: 120 mm
