BINDER PREMIUM 50 ATN10K6 DC JM

BINDER PREMIUM 50 ATN10K6 DC JM


BRECO® mechanical junction ATN system belt

Conveying belts
Download PDF
Grayed out functions require you to be logged in to your account
login to my account
Tangential force transmissible by the teeth
Range
BINDERpremium
Product range
BRECO® mechanical junction ATN system belt
Application
Transport application

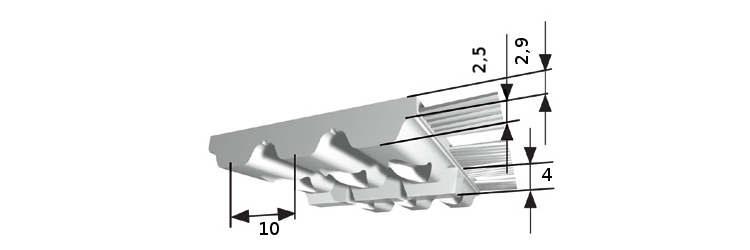

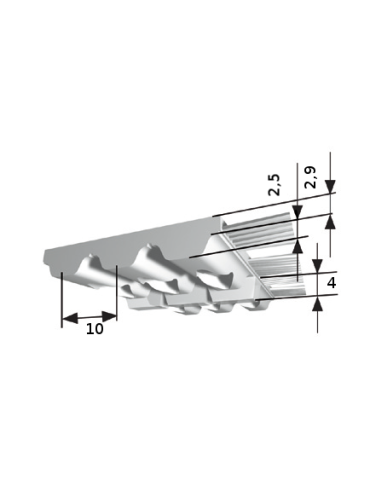

Profile
ATN
Pitch
10 mm
Double toothed belt
no
PU Material steel tension member
White TPU ST1
Shore hardness steel tension member PU belt
92 ShA
Temperature range of steel tension member belt
0 to 80 °C
Winding
S+Z
Guide profile
K6F
Tension member steel permissible stress mechanical fastener
750 N
Belt width
50 mm
Weight
0,305 kg/m
Z min single bending steel cord
25
Ø min Flexion simple câble acier
80 mm
