BINDER PREMIUM 100 ATN10

BINDER PREMIUM 100 ATN10

BINDER PREMIUM 75 ATN10

BINDER PREMIUM 25 ATN12,7

BRECO® ATN system belt welding junction

Download PDF

Grayed out functions require you to be logged in to your account

login to my account

Tangential force transmissible by the teeth Product range Technical characteristics Mechanical data Masses and dimensions Kinematic data

Tangential force transmissible by the teeth

Range: BINDERpremium

Product range: BRECO® ATN system belt welding junction

Application: Transport application

PU Material AISI belt: Translucent TPU AU1

Shore hardness AISI PU belt: 92 ShA

cour_conv_ct_temp_in2: 0 to 80 °C

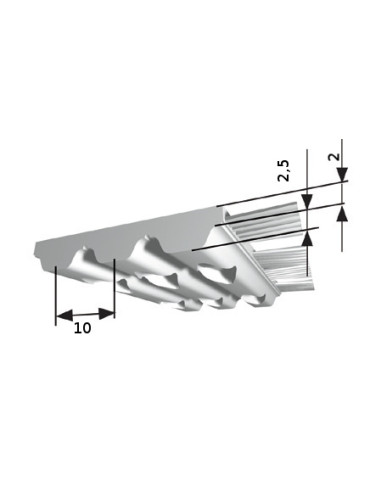

Profile: ATN

Pitch: 10 mm

Double toothed belt: no

PU Material steel tension member: White TPU ST1

Shore hardness steel tension member PU belt: 92 ShA

Temperature range of steel tension member belt: 0 to 80 °C

Winding: S+Z

Steel tension member permissible force FN at welding: 4000 N

Stainless steel tension member permissible force FN at welding: 4000 N

Belt width: 100 mm

Weight: 0,48 kg/m

Z min single bending AISI cord: 25

Ø min Flexion simple câble AISI: 80 mm

Z min single bending steel cord: 25

Ø min Flexion simple câble acier: 80 mm
