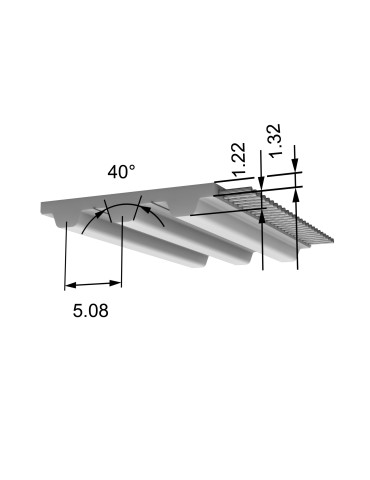

BINDER CUSTOM 9,53T1/5 V

BINDER CUSTOM 9,53T1/5 V

BINDER CUSTOM 7,94T1/5 V

BINDER CUSTOM 12,7T1/5 V

BRECO® inch pitch belt welding junction

Download the 3D file

Download PDF

Grayed out functions require you to be logged in to your account

login to my account

Tangential force transmissible by the teeth Product range Technical characteristics Mechanical data Masses and dimensions Kinematic data

Tangential force transmissible by the teeth

Range: BINDERcustom

Product range: BRECO® inch pitch belt welding junction

Application: Simple application

PU Material AISI belt: Translucent TPU AU1

Shore hardness AISI PU belt: 92 ShA

cour_conv_ct_temp_in2: 0 to 80 °C

Profile: T

Double toothed belt: no

PU Material steel tension member: White TPU ST1

Shore hardness steel tension member PU belt: 92 ShA

Temperature range of steel tension member belt: 0 to 80 °C

Winding: S+Z

Steel tension member permissible force FN at welding: 165 N

Width tolerance: +/- 0.5 mm

Belt width: 10 mm

Weight: 0,023 kg/m

Length tolerance: +/-0.8 mm

Total thickness tolerance: -0.1/+0.3 mm

Thickness tolerance of the tooth: 0/-0.05 mm

Z min single bending steel cord: 10

Ø min Flexion simple câble acier: 30 mm

Z min alternating bending steel cord: 15

Ø min alternée simple câble acier: 30 mm
