BINDER CUSTOM 32T20-DL V Conveying belts
BRECO® standard belt welding junction
BRECO® standard belt welding junction
Conveying belts
- Range
- BINDERcustom
- Product range
- BRECO® standard belt welding junction
- Application
- Precision application
- PU Material AISI belt
- Translucent TPU AU1
- Shore hardness AISI PU belt
- 92 ShA
- cour_conv_ct_temp_in2
- 0 to 80 °C

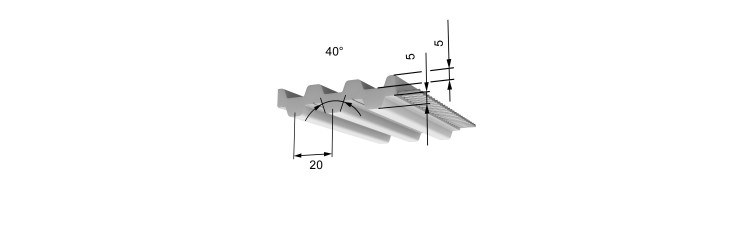

- Profile
- T
- Pitch
- 20 mm
- Double toothed belt
- yes
- PU Material steel tension member
- White TPU ST1
- Shore hardness steel tension member PU belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 to 80 °C
- Winding
- S + Z
- Steel tension member permissible force FN at welding
- 2250 N
- Stainless steel tension member permissible force FN at welding
- 1620 N
- Width tolerance
- +/- 1 mm
- Belt width
- 32 mm
- Weight
- 0,316 kg/m
- Length tolerance
- +/-0.8 mm
- Total thickness tolerance
- -0.1/+0.3 mm
- Thickness tolerance of the tooth
- 0/-0.15 mm
- Z min single bending AISI cord
- 30
- Ø min Flexion simple câble AISI
- 130 mm
- Z min alternating bending AISI
- 30
- Ø min Flexion alternée AISI
- 180 mm
- Z min single bending steel cord
- 25
- Ø min Flexion simple câble acier
- 120 mm
- Z min alternating bending steel cord
- 25
- Ø min alternée simple câble acier
- 180 mm
- Z min single bending E cord
- 25
- Ø min Flexion simple câble E
- 150 mm
- Z min alternating bending E cord
- 25
- Ø min alternée simple câble E
- 180 mm
