BINDER ACCESS 25TK5K6 CLA V

BINDER ACCESS 25TK5K6 CLA V

BINDER CUSTOM 50TK5K6 V

BINDER ACCESS 32TK5K6 CLA V

BRECOclassic® Self-guiding belt welding junction

Download PDF

Grayed out functions require you to be logged in to your account

login to my account

Tangential force transmissible by the teeth Product range Technical characteristics Mechanical data Masses and dimensions Kinematic data

Tangential force transmissible by the teeth

Range: BINDERaccess

Product range: BRECOclassic® Self-guiding belt welding junction

Application: Self-guided simple application

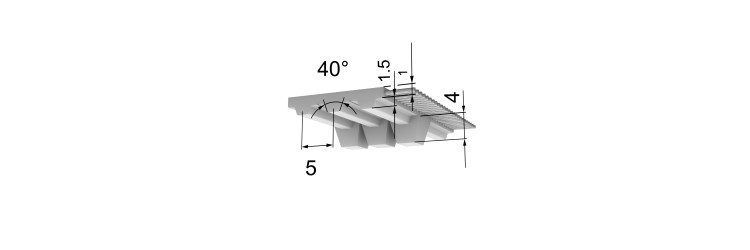

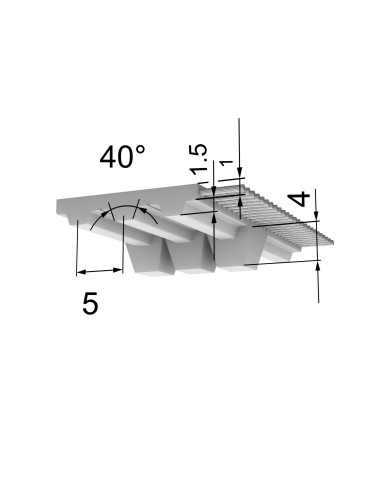

Profile: TK

Pitch: 5 mm

Double toothed belt: no

PU Material steel tension member: White TPU CLA

Shore hardness steel tension member PU belt: 92 ShA

Temperature range of steel tension member belt: 0 to 80 °C

Winding: S + Z

Guide profile: K6F

Steel tension member permissible force FN at welding: 420 N

Width tolerance: +/- 0.5 mm

Belt width: 25 mm

Weight: 0,067 kg/m

Length tolerance: +/-0.8 mm

Total thickness tolerance: -0.1/+0.3 mm

Thickness tolerance of the tooth: 0/- 0,1 mm

Z min single bending steel cord: 25

Ø min Flexion simple câble acier: 60 mm

Z min alternating bending steel cord: 25

Ø min alternée simple câble acier: 60 mm
