BINDER CUSTOM 40HTD5HF V

BINDER CUSTOM 40HTD5HF V

BINDER CUSTOM 30HTD5HF V

BINDER CUSTOM 50HTD5HF V

CONTI® Synchrodrive flexibility belt welding junction

Download the 3D file

Download PDF

Grayed out functions require you to be logged in to your account

login to my account

Tangential force transmissible by the teeth Product range Technical characteristics Mechanical data Masses and dimensions Kinematic data

Tangential force transmissible by the teeth

Range: BINDERcustom

Product range: CONTI® Synchrodrive flexibility belt welding junction

Application: High flexibility application

PU Material AISI belt: black

Shore hardness AISI PU belt: 92 ShA

cour_conv_ct_temp_in2: 0 to 80 °C

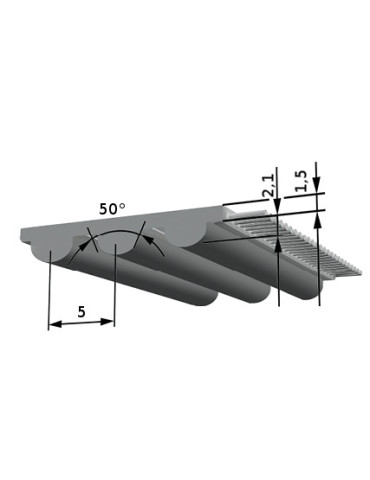

Profile: HTD

Pitch: 5 mm

Double toothed belt: no

PU Material steel tension member: Thermoplastic PU

Shore hardness steel tension member PU belt: 92 ShA

Temperature range of steel tension member belt: 0 to 80 °C

Winding: S + Z

Steel tension member permissible force FN at welding: 600 N

Width tolerance: +/- 0.6 mm

Belt width: 40 mm

Weight: 0,134 kg/m

Length tolerance: +/- 1 mm

Total thickness tolerance: 0/-0,25 mm

Z min single bending steel cord: 12

Ø min Flexion simple câble acier: 19 mm

Z min alternating bending steel cord: 12

Ø min alternée simple câble acier: 30 mm
