Compakt - H - FS15% - 400V3-AC - S 700 Compakt industrial actuators
Compakt Industrial actuator
Accueil | Electric Actuators | Standard industrial actuators | Compakt industrial actuators |
Compakt - H - FS15% - 400V3-AC - S 700
Compakt - H - FS15% - 400V3-AC - S 700
Compakt - H - FS15% - 400V3-AC - S 700

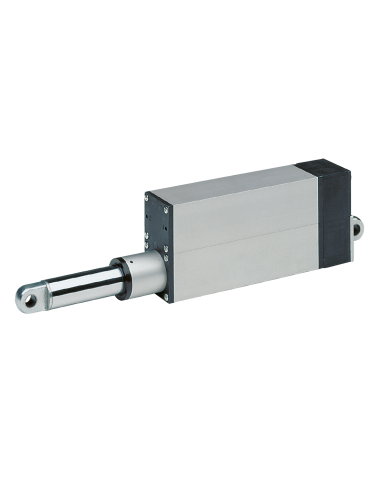

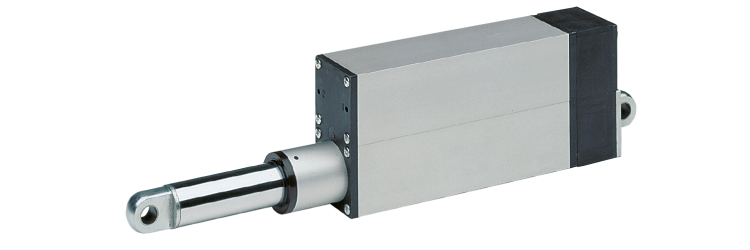

Compakt Industrial actuator
The COMPAKT can transmit high forces for reduced clearance. They can be optionally equipped with a ball screw.
Some applications:
- Door lock
- Settings of the axis of the bands of transport
- Adjusting fan blades
Some applications:
- Door lock
- Settings of the axis of the bands of transport
- Adjusting fan blades
Compakt industrial actuators
- Product range
- Compakt Industrial actuator
- Double scraper
- Yes
- With mandatory electromagnetic brake
- No
- Color treatment
- Black and silver
- Screw type
- Steel screws - Synthetic nut
- Length of stroke
- 700 mm
- Temperature range
- -10 to +50 °C
- Stem material
- Chrome steel
- Stem
- Cylindrical with anti-rotation system
- Limit switch
- electromechanical adjustable
- Stem fastening
- Fixed eyecup
- Body fixing
- Fixed eyecup
- Body material
- Aluminum and plastic
- Stroke speed
- 2 mm/s
- mec_verins_indu_dm_force_deplacement
- 15 000 N
- Service factor
- FS15%
- Voltage type
- Alternating current
- Supply voltage
- 400 V
- IP protection type
- IP54
- Brake voltage
- 400 V
- mec_Aerindus_de_pm
- 1,3 A
- Options
- Position sensor : Potentiometer or encoder - Adjustable electronic limit switches - Brake - 0-10V output if encoder
- Accessories
- Other fasteners : clevis, ball joint, eye cup with spring or swivel, etc …

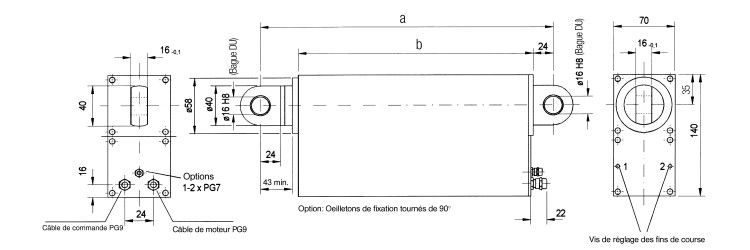

- Dimension b (for standard minimum stroke)
- 376 mm
- Dimension note
- Download the documentation to have the additional dimensions.
- Dimension c
- 70 mm
- Dimension d
- 140 mm
