Clamp plate 60 X 88-AT15PROTECT-AP
Clamp plate 60 X 88-AT15PROTECT-AP
Clamp half-plate with bore holes
These clamp plates are used for a linear drive applications. They are supplied without a counter-plate. They are used to secure a carriage to a linear belt and to secure the ends of a belt to a machine frame.
Clamp plates
- Product range
- Clamp half-plate with bore holes
- Without or with hole
- With bore holes
- Profile / Pitch
- AT15PROTECT
- Material
- AL 6060
- Belt width
- 32 mm

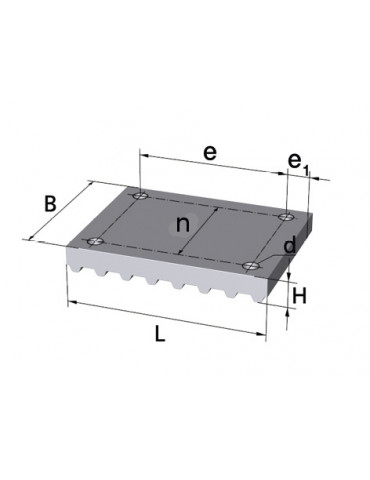

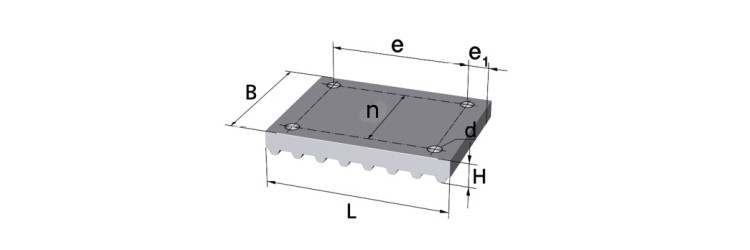

- Dimension B
- 60 mm
- Dimension L
- 88 mm
- Dimension D
- 9 mm
- Dimension A
- 140 mm
- Dimension C
- 50 mm
- Dimension H
- 20 mm
- Dimension E
- 50 mm
- Dimension e1
- 20 mm
- Dimension N
- 42 mm
