Clamp plate 140 x 160-T1/2-AP Clamp plates
Clamp plate whith bore holes
Clamp plate whith bore holes
These clamp plates are used for a linear drive applications. They are supplied without a counter-plate. They are used to secure a carriage to a linear belt and to secure the ends of a belt to a machine frame.
Clamp plates
- Product range
- Clamp plate whith bore holes
- Without or with hole
- With bore holes
- Profile / Pitch
- T1/2
- Material
- AL 6060
- Belt width
- 101,6 mm

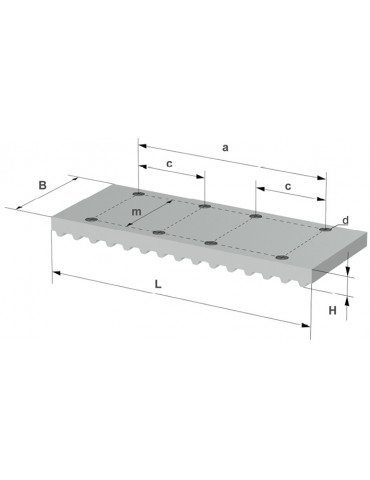

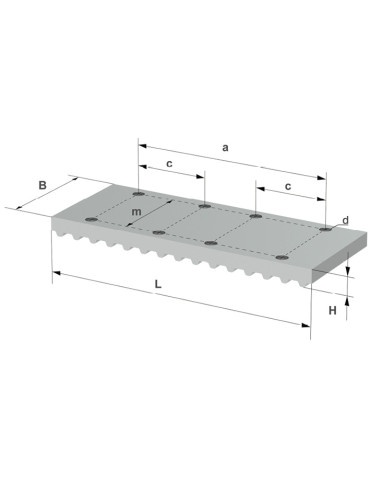

- Dimension B
- 140 mm
- Dimension L
- 160 mm
- Dimension D
- 6,5 mm
- Dimension M
- 124 mm
- Dimension A
- 110 mm
- Dimension C
- 30 mm
- Dimension H
- 10 mm
