Clamp plate 50 x 160-T3/8-AP Clamp plates
Clamp plate whith bore holes
Clamp plate whith bore holes
These clamp plates are used for a linear drive applications. They are supplied without a counter-plate. They are used to secure a carriage to a linear belt and to secure the ends of a belt to a machine frame.
Clamp plates
- Product range
- Clamp plate whith bore holes
- Without or with hole
- With bore holes
- Profile / Pitch
- T3/8
- Material
- AL 6060
- Belt width
- 25,4 mm

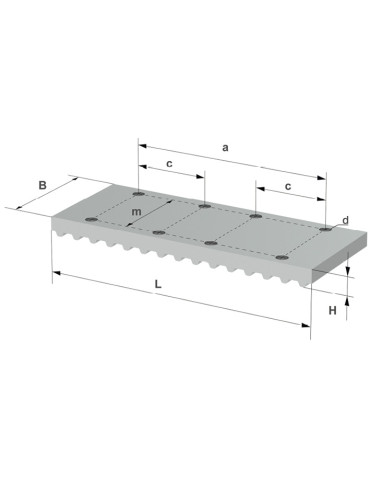

- Dimension B
- 50 mm
- Dimension L
- 160 mm
- Dimension D
- 6,5 mm
- Dimension M
- 38 mm
- Dimension A
- 110 mm
- Dimension C
- 30 mm
- Dimension H
- 10 mm
