Clamp plate 30 x 50-T 2,5-AP Clamp plates
Clamp plate whith bore holes
Clamp plate whith bore holes
These clamp plates are used for a linear drive applications. They are supplied without a counter-plate. They are used to secure a carriage to a linear belt and to secure the ends of a belt to a machine frame.
Clamp plates
- Product range
- Clamp plate whith bore holes
- Without or with hole
- With bore holes
- Profile / Pitch
- T 2,5
- Material
- AL 6060
- Belt width
- 10 mm

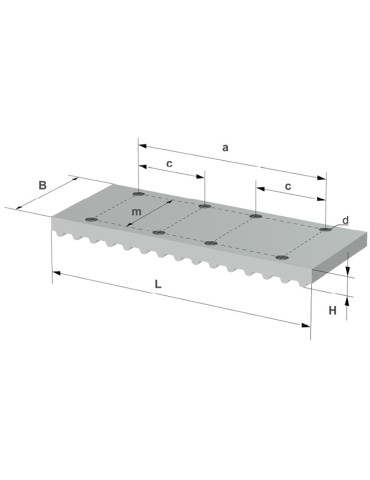

- Dimension B
- 30 mm
- Dimension L
- 50 mm
- Dimension D
- 5,5 mm
- Dimension M
- 20 mm
- Dimension A
- 30 mm
- Dimension C
- 15 mm
- Dimension H
- 6 mm
