Clamp plate 75 X 180-AT15PROTECT-AP
Clamp plate 75 X 180-AT15PROTECT-AP
Clamp plate whith bore holes
These clamp plates are used for a linear drive applications. They are supplied without a counter-plate. They are used to secure a carriage to a linear belt and to secure the ends of a belt to a machine frame.
Clamp plates
- Product range
- Clamp plate whith bore holes
- Without or with hole
- With bore holes
- Profile / Pitch
- AT15PROTECT
- Material
- AL 6060
- Belt width
- 50 mm

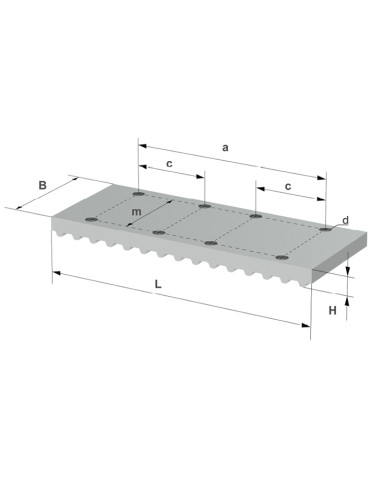

- Dimension B
- 75 mm
- Dimension L
- 180 mm
- Dimension D
- 9 mm
- Dimension M
- 62 mm
- Dimension A
- 140 mm
- Dimension C
- 50 mm
- Dimension H
- 20 mm
- Dimension E
- 50 mm
- Dimension e1
- 20 mm
