MS10 T - 26,7 mm/s - 400VAC - S 300 - 8000 ADE MS10 T actuators
MS10 T industrial actuator
Accueil | Electric Actuators | Standard industrial actuators | ADE MS10 T actuators |
MS10 T - 26,7 mm/s - 400VAC - S 300 - 8000
MS10 T - 26,7 mm/s - 400VAC - S 300 - 8000
MS10 T - 26,7 mm/s - 400VAC - S 300 - 8000

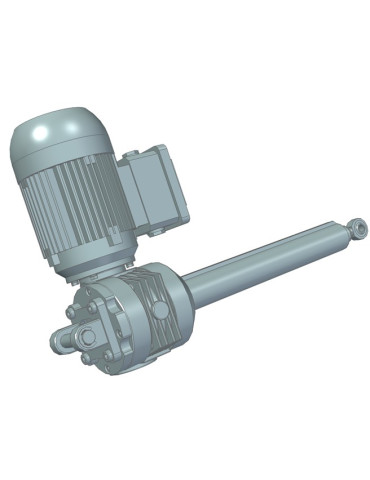

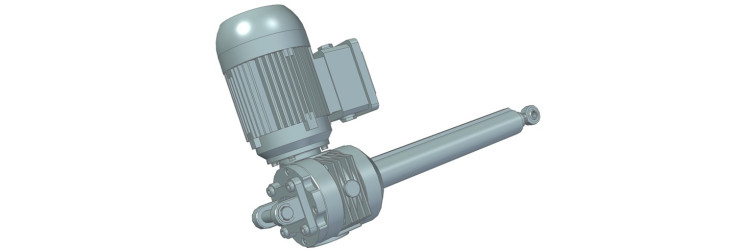

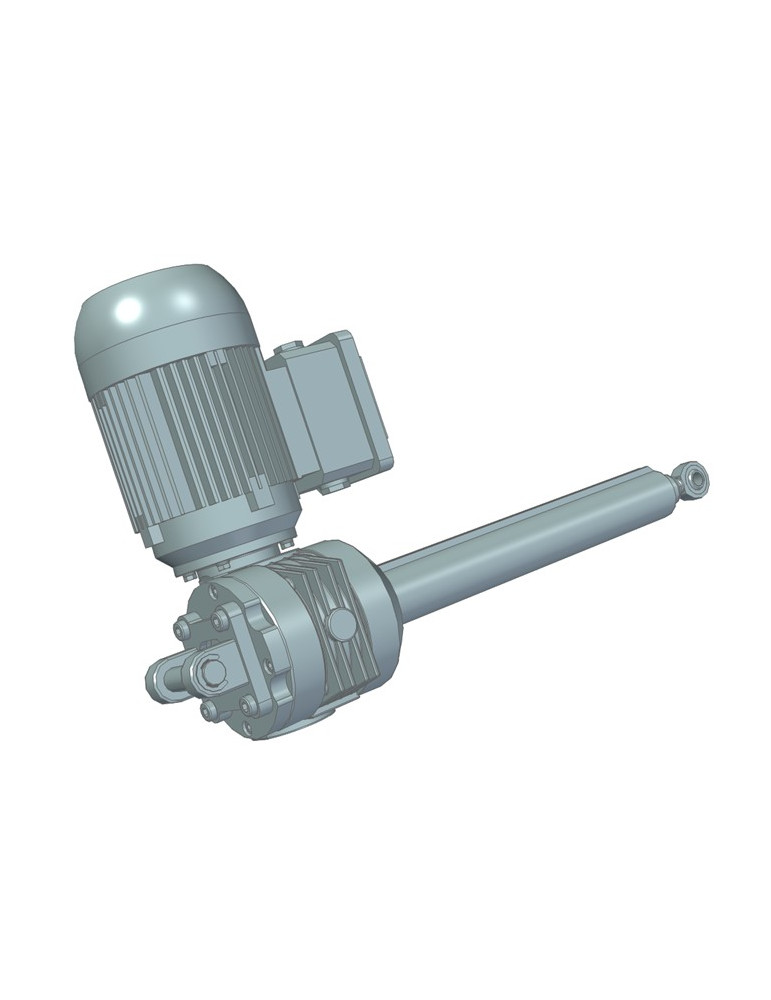

MS10 T industrial actuator
The MS10 T are standard modular actuators. They are robust design and maintenance-free, designed for basic applications. They have a wide range of strokes and speeds for forces up to 10kN.
ADE MS10 T actuators
- Product range
- MS10 T industrial actuator
- Double scraper
- ADE version single scraper
- With mandatory electromagnetic brake
- No
- Color treatment
- Black
- Screw type
- Trapezoidal screw
- Length of stroke
- 300 mm
- Temperature range
- -10 to +50 °C
- Stem material
- Chrome steel
- Stem
- Cylindrical with anti-rotation system
- Limit switch
- electromagnetic
- Stem fastening
- See accessories
- Body fixing
- See accessories
- Body material
- Galvanized or protected steel
- Stroke speed
- 26,7 mm/s
- Load (N)
- 8000
- Service factor
- FS100%
- Voltage type
- Alternating current
- Supply voltage
- 400 V
- IP protection type
- IP55
- Brake voltage
- 400 V
- Options
- Limit switches sensor - Brake - Encoder - Supply voltage : 12/24/48/90/170 V DC

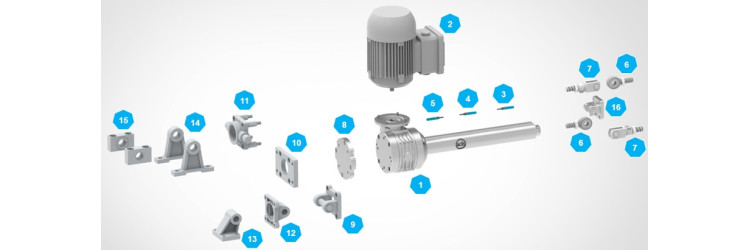

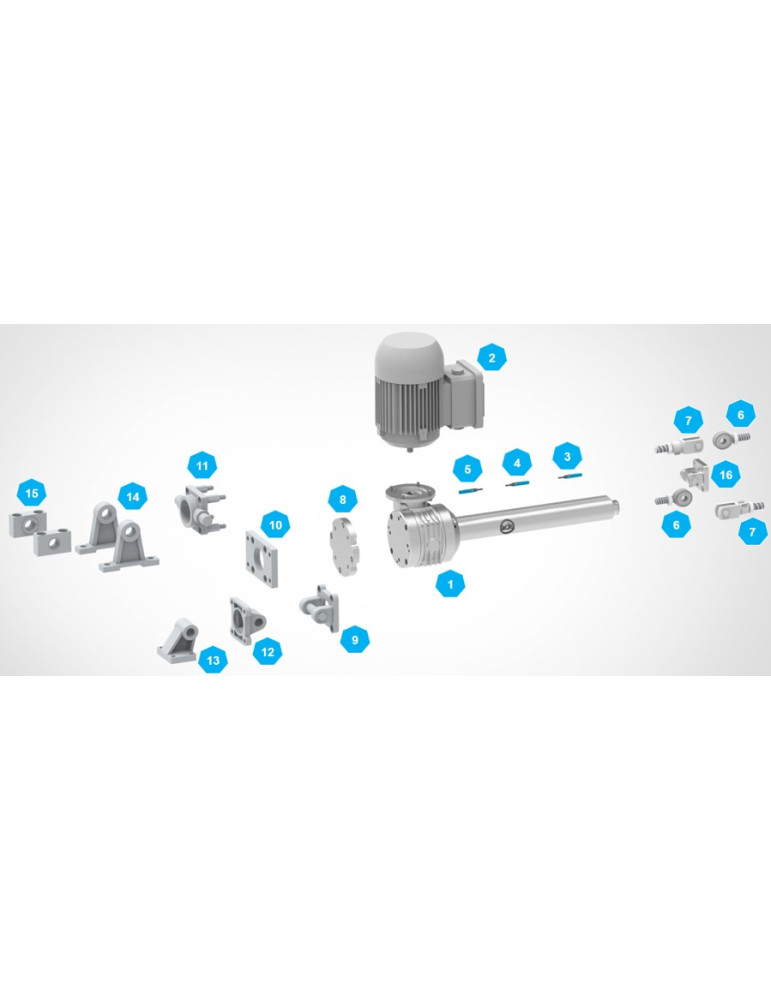

- Accessories
- Wide choice of interfaces possible selectable from a modular system.
- Dimension note
- Download the documentation to have the additional dimensions.
