Vario 1 - A - FS15% - 400V3-AC - S 700 Vario industrial actuators
Vario Industrial actuator
Accueil | Electric Actuators | Standard industrial actuators | Vario industrial actuators |
Vario 1 - A - FS15% - 400V3-AC - S 700
Vario 1 - A - FS15% - 400V3-AC - S 700
Vario 1 - A - FS15% - 400V3-AC - S 700

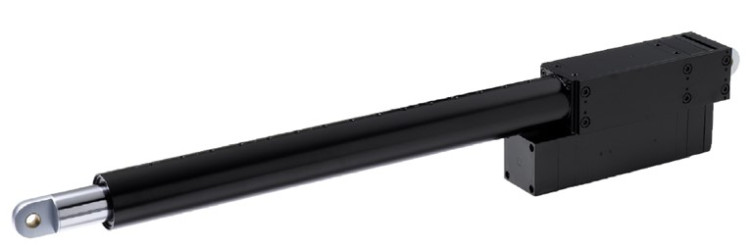

Vario Industrial actuator
The VARIO are the most powerful in force and stroke actuators range. They support high static loads. According the desired speed, they can be equipped with ball screws or trapezoidal.
Some applications:
> - Special machine
- Mobile platform equipment
- Lift table
Some applications:
> - Special machine
- Mobile platform equipment
- Lift table
Vario industrial actuators
- Product range
- Vario Industrial actuator
- Double scraper
- Yes
- With mandatory electromagnetic brake
- Yes
- Color treatment
- Black
- Screw type
- Ballscrew
- Length of stroke
- 700 mm
- Temperature range
- -10 to +50 °C
- Stem material
- Chrome steel
- Stem
- Cylindrical with anti-rotation system
- Limit switch
- electromechanical
- Stem fastening
- Fixed eyecup
- Body fixing
- Screw on housing
- Body material
- Painted steel
- Stroke speed
- 70 mm/s
- Load (N)
- 10000
- Service factor
- FS15%
- Voltage type
- Alternating current
- Supply voltage
- 400 V
- IP protection type
- IP54
- Brake voltage
- 400 V
- Motor current
- 3,0 A
- Options
- Position sensor : Encoder or Potentiometer
- Accessories
- Other fasteners : clevis, ball joint, threaded end, etc.

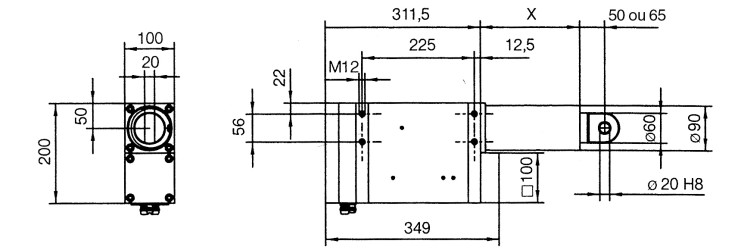

- Dimension note
- Download the documentation to have the additional dimensions.
- Dimension d
- 200 mm
