Picolo XL - FS15% - 24VDC - S 400
Picolo XL - FS15% - 24VDC - S 400
Picolo XL - FS15% - 24VDC - S 400
Picolo Industrial actuator

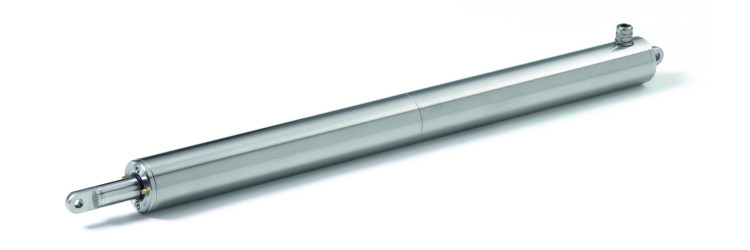

The PICOLO XL benefits from a low noise level, IP65 protection and are made of stainless steel.
Picolo industrial actuators
- Product range
- Picolo Industrial actuator
- Double scraper
- Yes
- With mandatory electromagnetic brake
- No
- Color treatment
- Silver
- Screw type
- Steel screws - Synthetic nut
- Length of stroke
- 400 mm
- Temperature range
- -20 to +80 °C
- Stem material
- Stainless steel
- Stem
- Cylindrical with anti-rotation system
- Limit switch
- electromechanical adjustable
- Stem fastening
- Fixed eyecup
- Body fixing
- Fixed eyecup
- Body material
- Stainless steel
- Stroke speed
- 5 mm/s
- Load (N)
- 1200
- Service factor
- FS15%
- Voltage type
- Direct current
- Supply voltage
- 24 V
- IP protection type
- IP65
- Brake voltage
- 24 V
- Motor current
- 2,0 A
- Options
- Supply voltage : 12VDC - Paint according to RAL - Encoder
- Accessories
- Adjustable eyepiece - Adjustable Spring - Rod end - Clevis or patella or spigot or threaded rod, control box, electronic synchronization module.
- Dimension note
- Download the documentation to have the additional dimensions.
- Dimension f
- 821 mm
- Dimension d
- 48 mm
