Picolo 0 - B - 24VDC - Stainless steel - S 600 Picolo industrial actuators
Picolo Industrial actuator
Accueil | Electric Actuators | Standard industrial actuators | Picolo industrial actuators |
Picolo 0 - B - 24VDC - Stainless steel - S 600
Picolo 0 - B - 24VDC - Stainless steel - S 600
Picolo 0 - B - 24VDC - Stainless steel - S 600

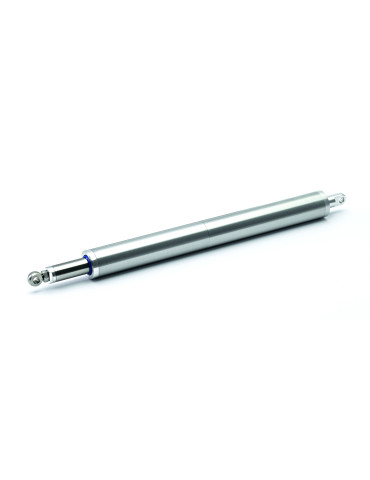

Picolo Industrial actuator
The high protection of this small actuator allows applications in difficult environments (IP67 protection and quality stainless steel housing) .The diameter of this is very low and will be housed in small spaces.
Picolo industrial actuators
- Product range
- Picolo Industrial actuator
- Double scraper
- Yes
- With mandatory electromagnetic brake
- No
- Color treatment
- Silver
- Screw type
- Steel screws - Synthetic nut
- Length of stroke
- 600 mm
- Temperature range
- -20 to +80 °C
- Stem material
- Stainless steel
- Stem
- Cylindrical with anti-rotation system
- Limit switch
- realized by internal current measurement
- Stem fastening
- Fixed eyecup
- Body fixing
- Fixed eyecup
- Body material
- Stainless steel
- Stroke speed
- 9 mm/s
- Load (N)
- 400
- Service factor
- FS2
- Voltage type
- Direct current
- Supply voltage
- 24 V
- IP protection type
- IP67
- Brake voltage
- 24 V
- Motor current
- 1,0 A
- Options
- Supply voltage : 12VDC - Paint according to RAL - Encoder
- Accessories
- Adjustable eyepiece - Adjustable Spring - Rod end - Clevis or patella or spigot or threaded rod, control box, electronic synchronization module.
- Dimension note
- Download the documentation to have the additional dimensions.
- Dimension f
- 909 mm
- Dimension d
- 35 mm
