Herkules 1 - A - FS15% - 400V3-AC - S 100
Herkules 1 - A - FS15% - 400V3-AC - S 100
Herkules 1 - A - FS15% - 400V3-AC - S 100

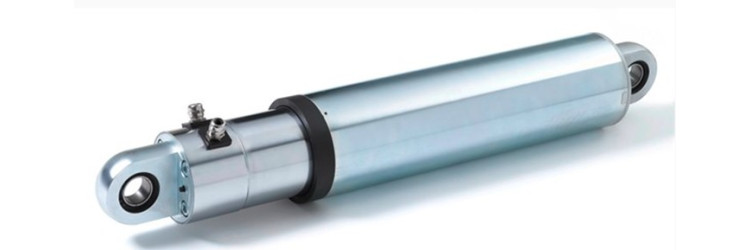

Herkules Industrial actuator
HERKULES are the only actuators in our range to have a tube-shaped outer rod. They support high static loads and are shock resistant. They have been designed to withstand extreme constraints.
Herkules industrial actuators
- Product range
- Herkules Industrial actuator
- Double scraper
- Yes
- With mandatory electromagnetic brake
- Yes (in this case the limit switches can no longer be mounted)
- Color treatment
- Silver
- Screw type
- Steel screws
- Length of stroke
- 100 mm
- Temperature range
- -20 to +50 °C
- Stem material
- Chrome steel
- Stem
- Cylindrical without anti-rotation system
- Limit switch
- Electromechanical (if limit switches are implemented, the brake, encoder or potentiometer options will no longer be effective)
- Stem fastening
- Fixed eyecup
- Body fixing
- Fixed eyecup
- Body material
- Galvanized steel
- Stroke speed
- 9 mm/s
- Load (N)
- 28000
- Service factor
- FS15%
- Voltage type
- Alternating current
- Supply voltage
- 400 V
- IP protection type
- IP54
- Brake voltage
- 400 V
- Motor current
- 5,0 A
- Options
- Brake or Encoder or Potentiometer (only one of these options can be mounted) - Special surface treatment
- Accessories
- Other fixings: patella, etc …

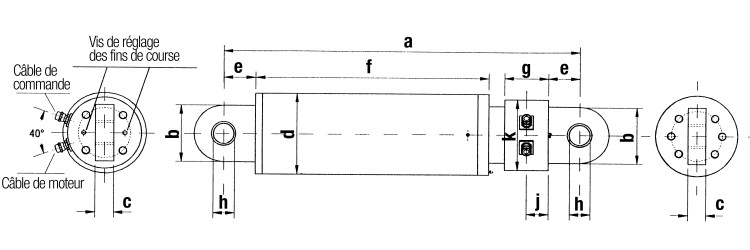

- Dimension note
- Download the documentation to have the additional dimensions.
- Dimension f
- 450 mm
- Dimension d
- 120 mm
